Electric mining truck

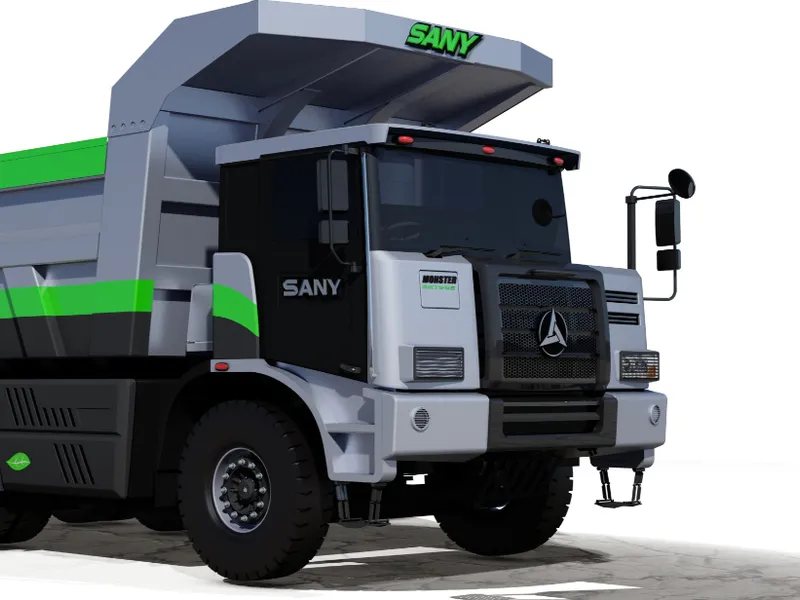

SANY SKT90E
The SANY SKT90E is an electric mining truck from SANY (China). Its payload is 60 t.
- Payload
- 60 t
- Peak power
- 740 kW
- Body
- 38 m³
SANY SKT90E specifications
Power and drive
- Motor power
- 740 kW peak (992 hp)
- Torque
- 2,300 Nm
- Transmission
- Dual 3-shift AMT
- Gradeability
- 39%
Weights and dimensions
- Payload
- 60 t (132,300 lb)
- Curb weight
- 37 t (81,600 lb)
- Body capacity
- 38 m³
- Length × width × height
- 9,145 × 3,660 × 4,395 mm
Further details
- Axle loads
- 25+35+35(t)
- Steering
- Left/Right
- Turning radius
- 12,500 mm
- Tyres
- 16.00R25
Source: SANY product page · SANY brochure (PDF), checked 27 October 2026.
What the SANY SKT90E is built for
The SANY SKT90E is a battery-electric off-highway mining truck carrying a 60 t load in a body of 38 m³. Built for open-pit mines and quarries rather than public roads, it works the short, repeated haul between the face and the crusher or dump, where an electric drive recovers energy on every loaded descent.
Power and drive
Its electric drive delivers 740 kW at peak (992 hp), with 2,300 Nm of torque.
Drivetrain: dual 3-shift AMT.
The SANY SKT90E climbs gradients of up to 39%.
