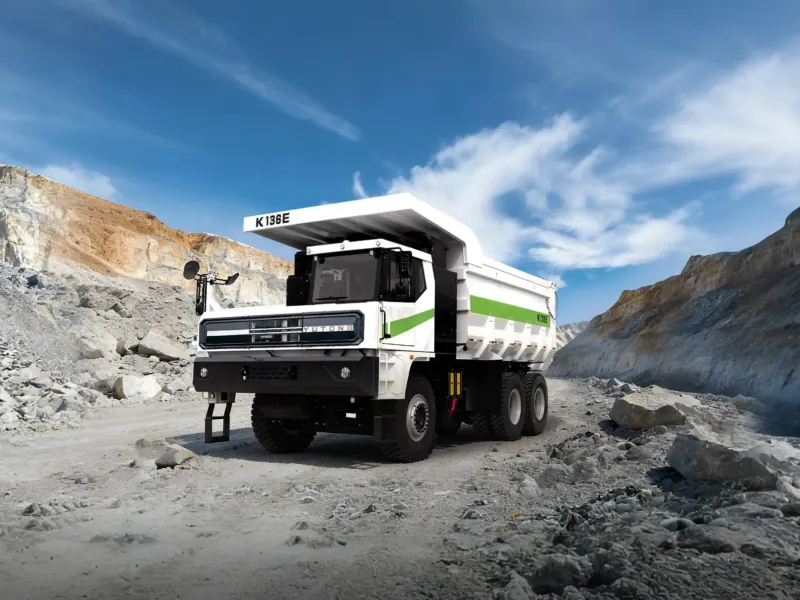

Yutong YTK136E Electric Mining Truck
The Yutong YTK136E Electric Mining Truck is an electric mining truck from Yutong (China). It carries a 704 kWh battery, with a payload of 90 – 100 t.
- Battery
- 704 kWh
- Payload
- 90 – 100 t
- Body
- 56 m³
Yutong YTK136E Electric Mining Truck specifications
Battery and charging
- Battery capacity
- 704 kWh
Power and drive
- Gradeability
- 35%
Weights and dimensions
- Payload
- 90 – 100 t (198,400 – 220,500 lb)
- Body capacity
- 56 m³
- Length × width × height
- 10,870 × 4,325 × 4,900 mm
- Wheelbase
- 4600+1900 mm
Further details
- Turning diameter
- 25.5 m or less
- Body
- 52 or 56 m³ struck, earthwork body
Source: Yutong Trucks: YTK136E, checked 27 October 2026.
What the Yutong YTK136E Electric Mining Truck is built for
The Yutong YTK136E Electric Mining Truck is a battery-electric off-highway mining truck carrying a 90 – 100 t load in a body of 56 m³. Built for open-pit mines and quarries rather than public roads, it works the short, repeated haul between the face and the crusher or dump, where an electric drive recovers energy on every loaded descent.
Battery and charging
The Yutong YTK136E Electric Mining Truck carries a 704 kWh battery.
Power and drive
The Yutong YTK136E Electric Mining Truck climbs gradients of up to 35%.
